Kit Log #053: Drive sys and arm – guides, sheets, projects

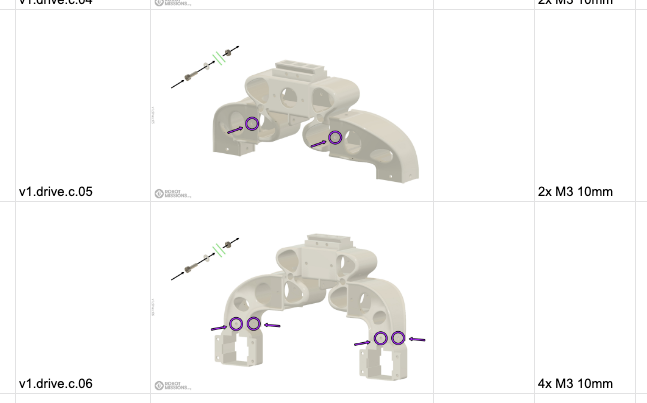

Today we helped to set up the drive system sheet for Beck to fill in with the guide description. This involved dividing the steps into parts, and adding the images. The CAD models with the screws added helped tremendously to recount them all and add them too.
-
- Drive sys instructions
-
- Add in screws
-
- Super bright lights kit wording
-
- Arm sheet
-
- Arm pieces
In addition to this, the super bright lights product description was added, and reviewed the arms sheet while starting on those pieces. The idea for the pieces will be to display it on a page where the 3D model is seen beside the quantity and print instruction. Additionally, we want to add in an AR quick look view, using the .usdz format. Step by step!
