Here you can find all the 3D models to print, and see what it looks like when assembled. Not sure what piece you have? Check out the augmented reality view* to compare the piece side by side. *Coming soon, and requires an iOS device and tapping the ‘AR’ button

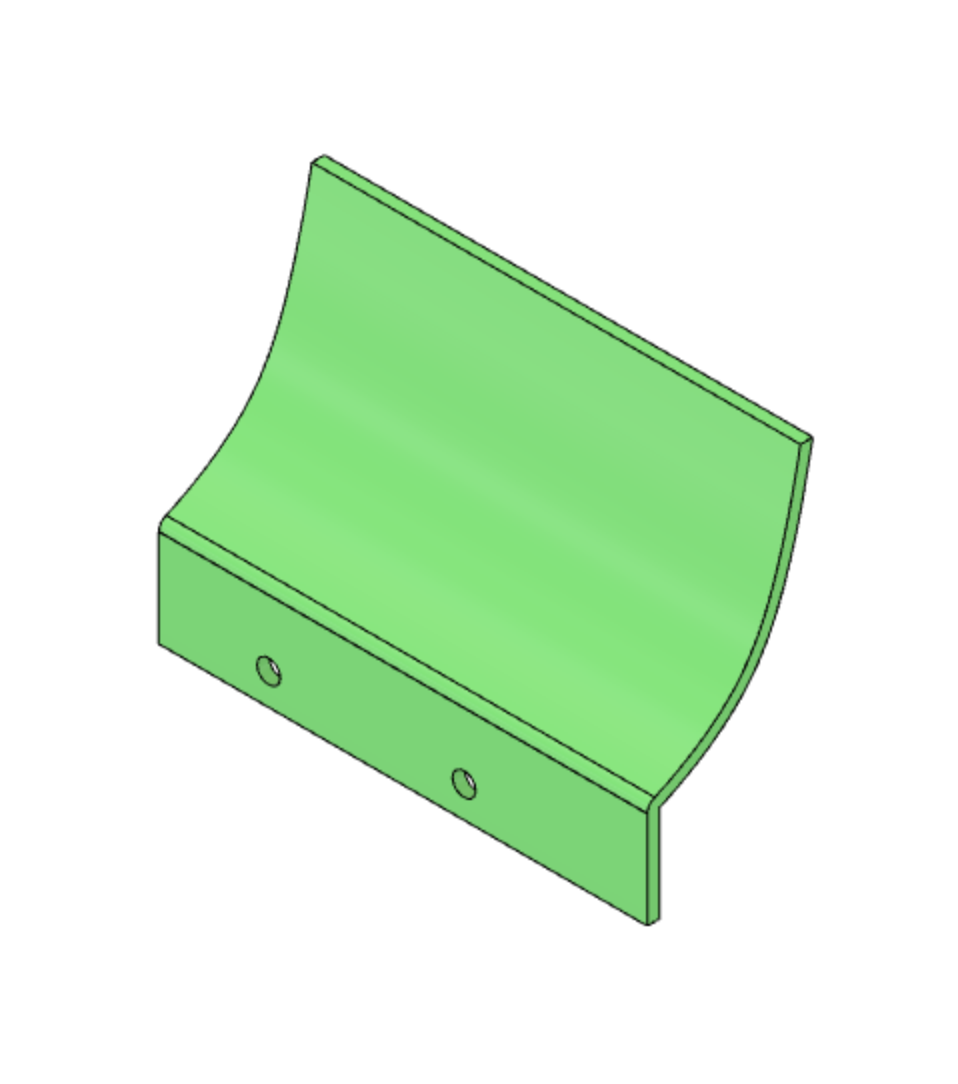

Hopper Back Left
Qty
1
Hopper edge piece around the mount. Print laying flat with supports

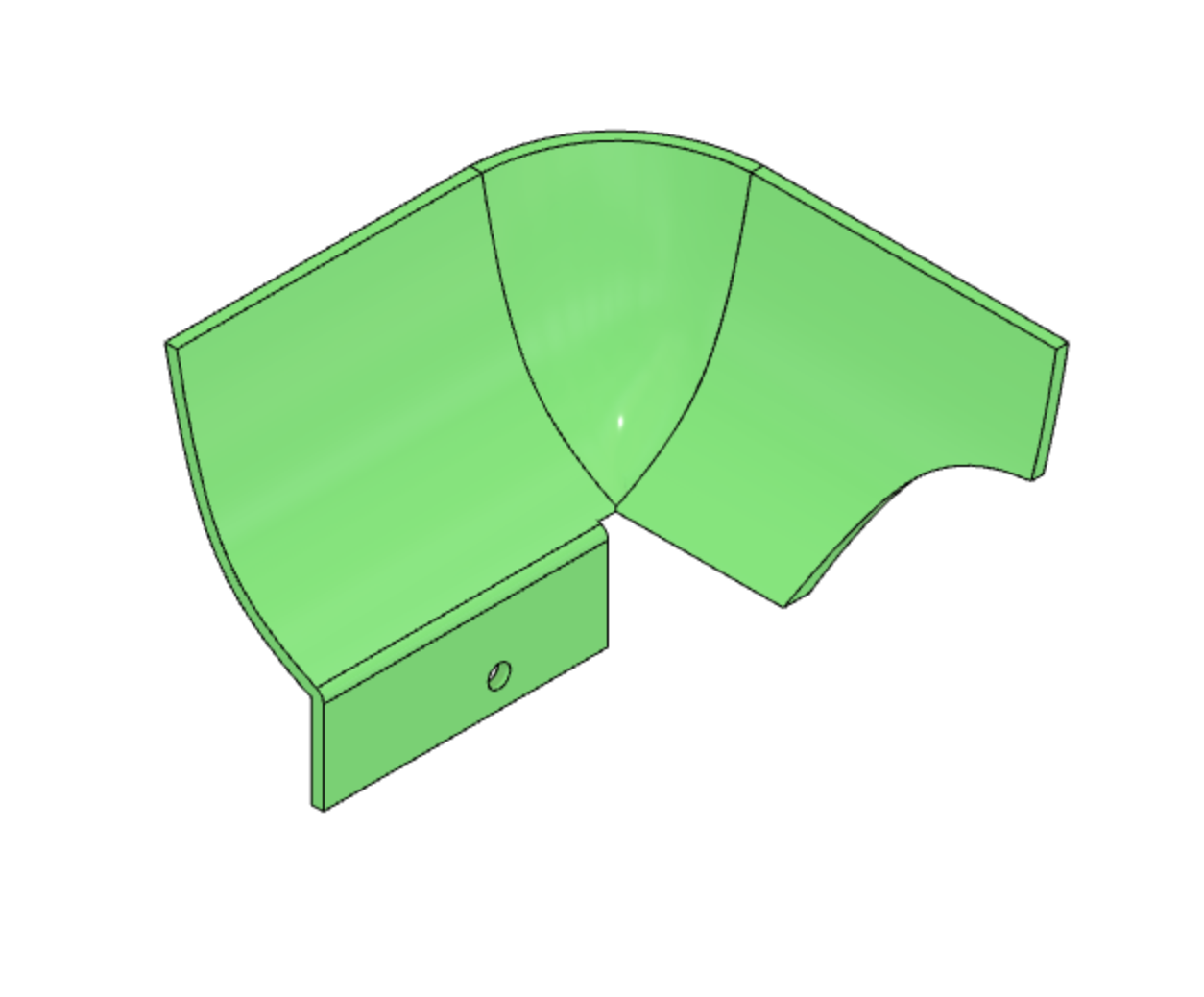

Hopper Back Left Corner
Qty
1
Hopper edge piece around the mount. Print so the corner is on the build platform and with supports

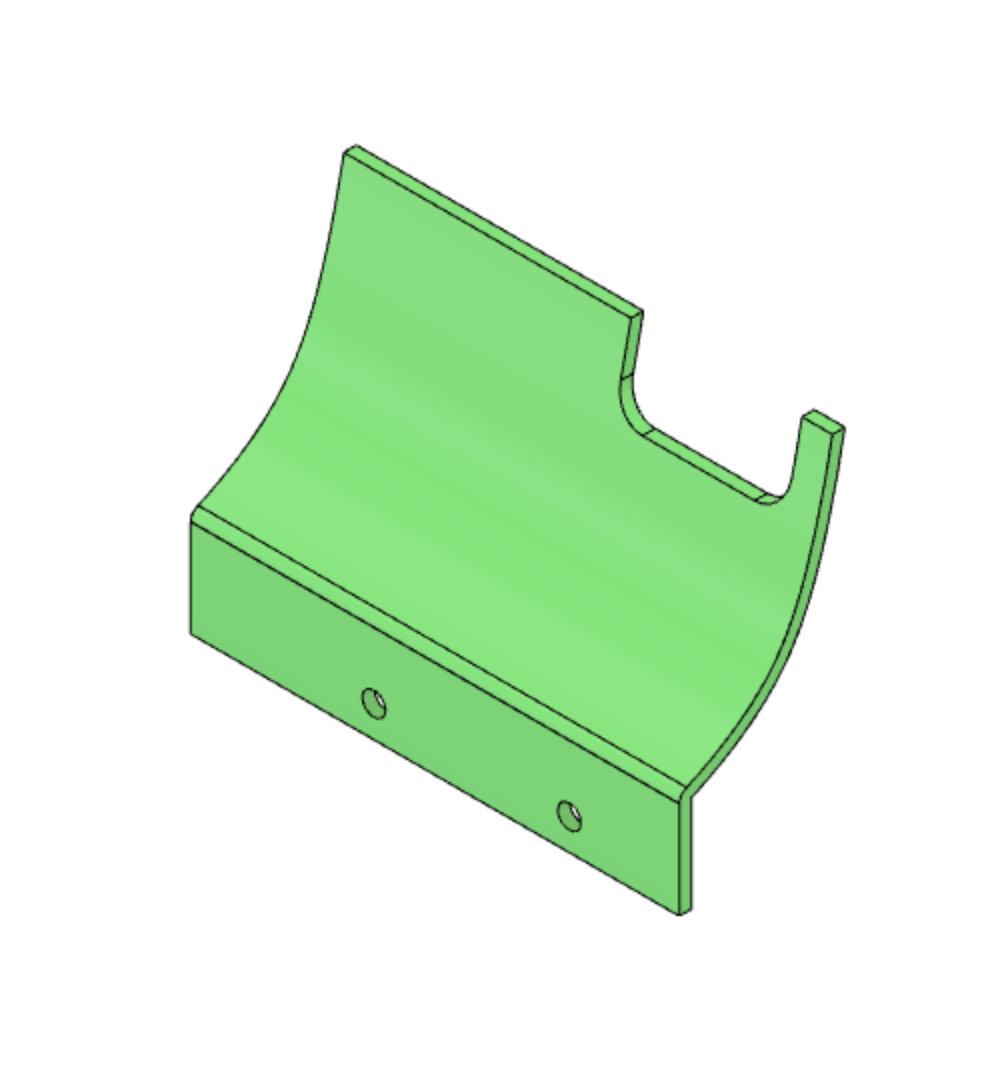

Hopper Back Right
Qty
1
Hopper edge piece around the mount. Print laying flat with supports

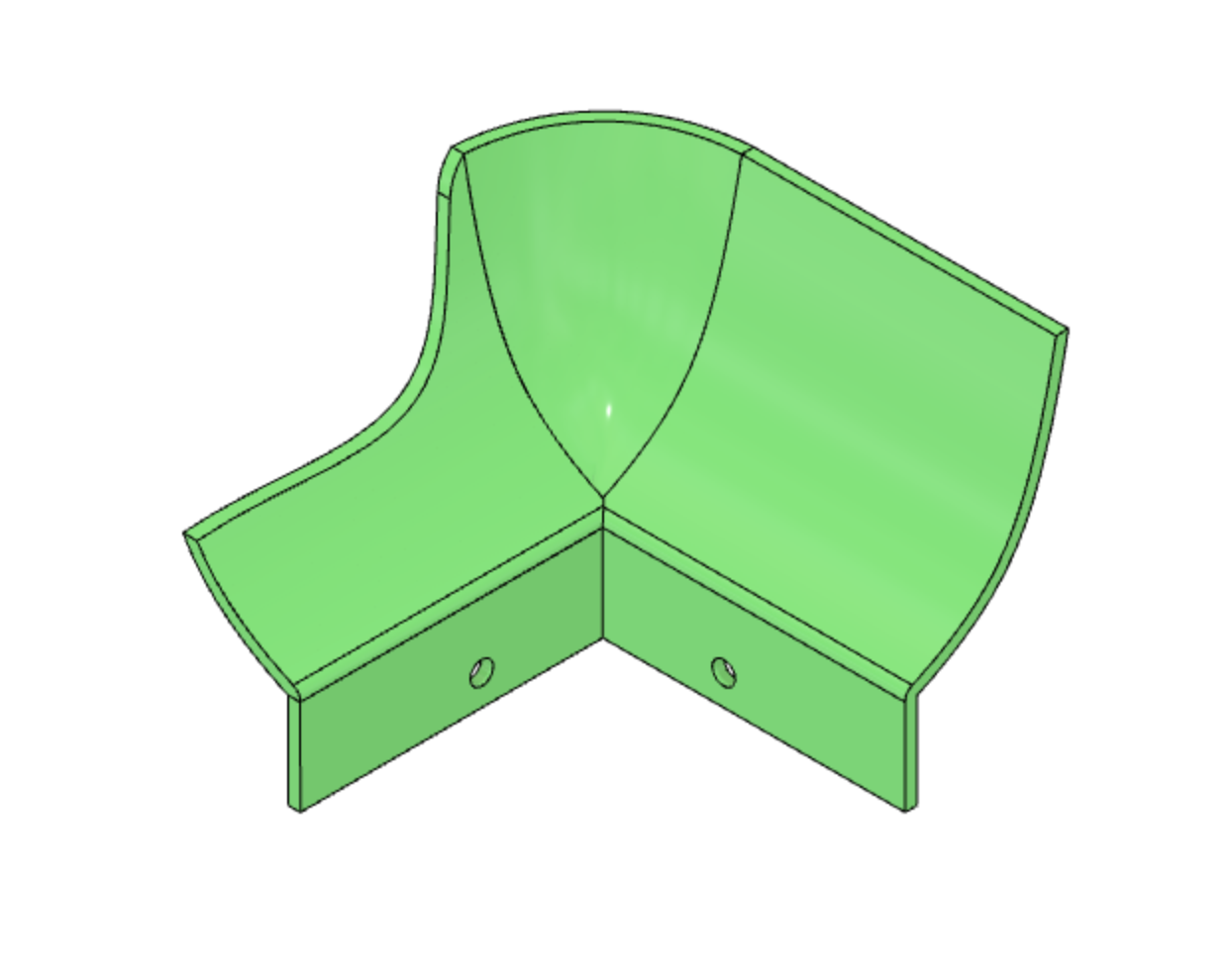

Hopper Back Right Corner
Qty
1
Hopper edge piece around the mount. Print so the corner is on the build platform and with supports

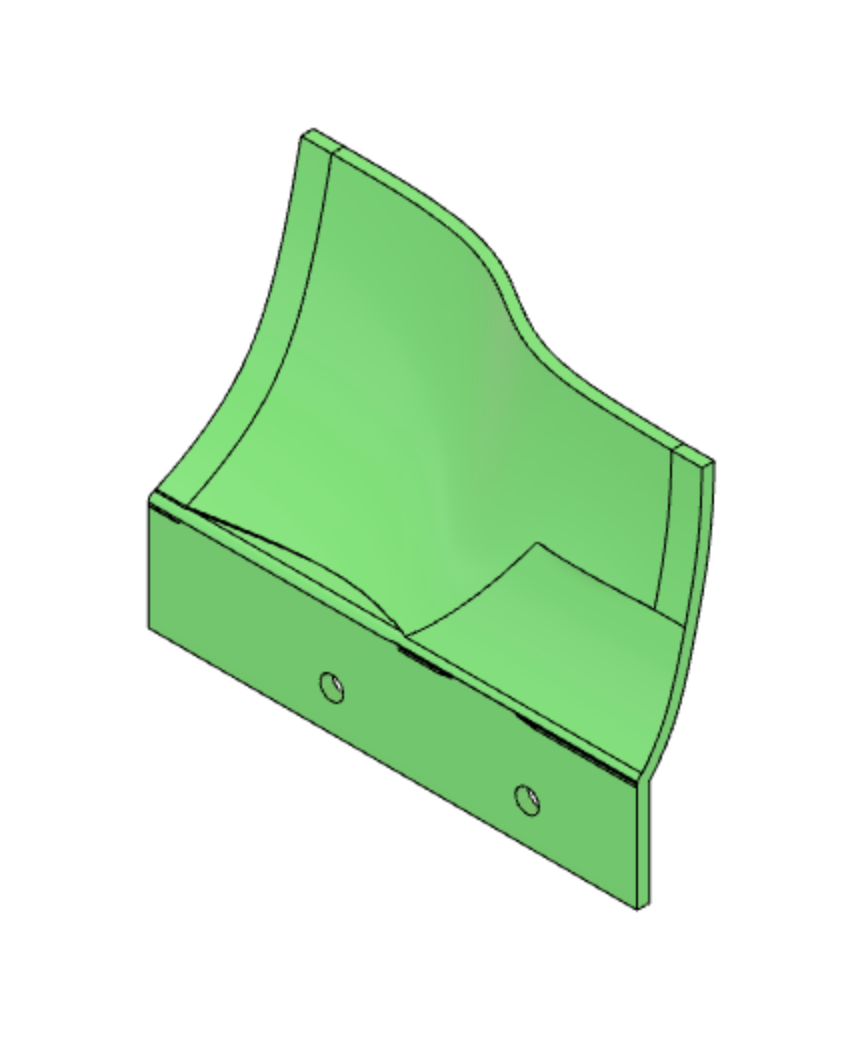

Hopper Front Left
Qty
1
Hopper edge piece around the mount. Print laying flat with supports

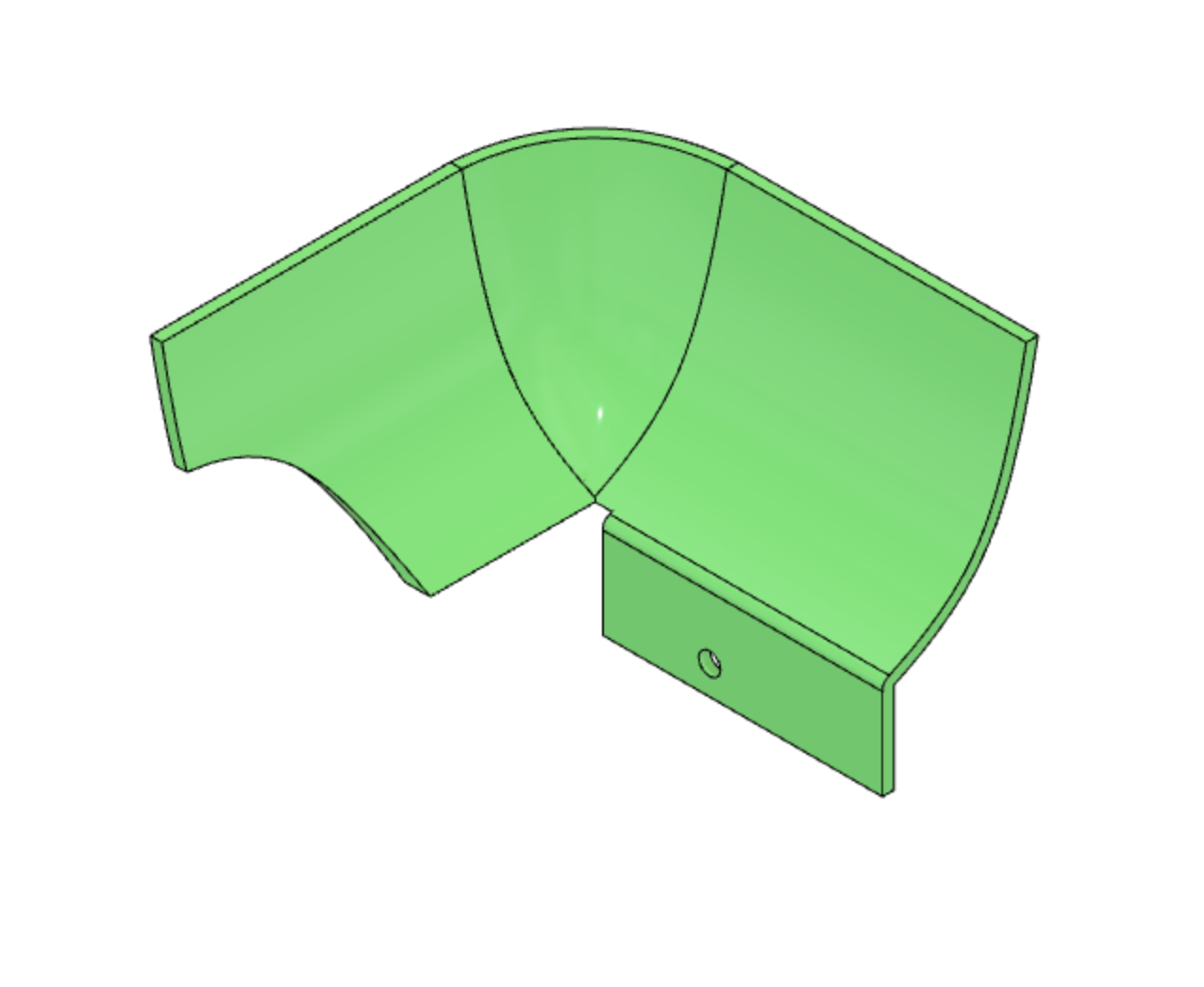

Hopper Front Left Corner
Qty
1
Hopper edge piece around the mount. Print so the corner is on the build platform and with supports

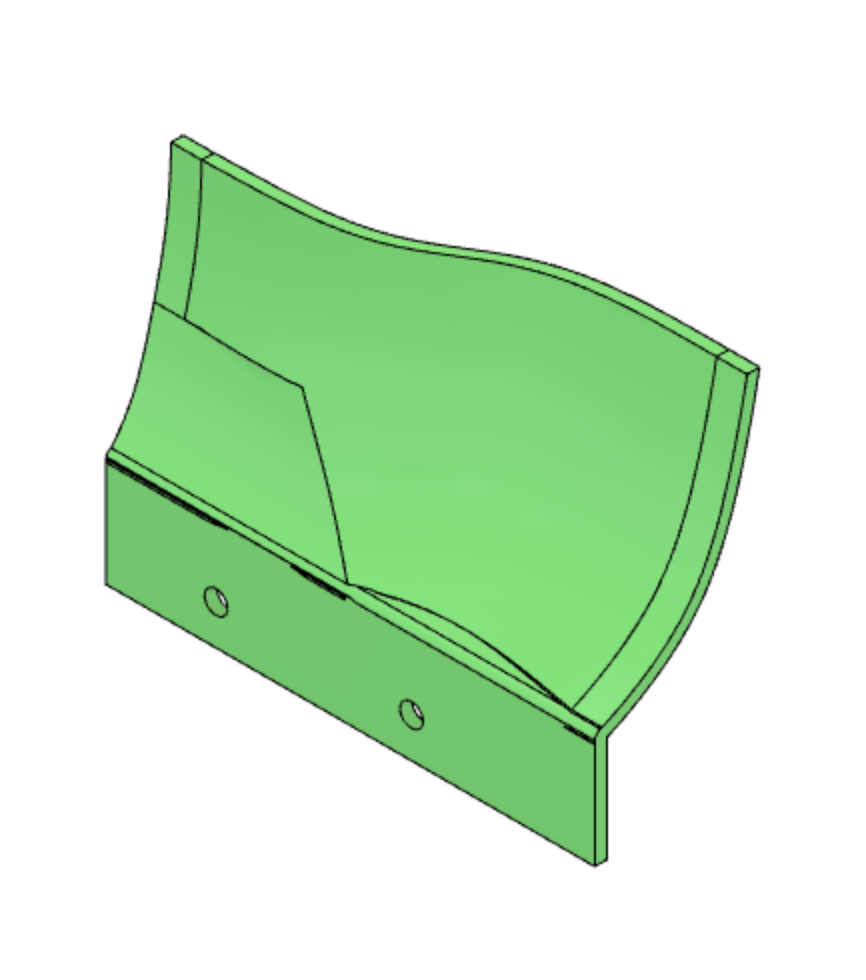

Hopper Front Right
Qty
1
Hopper edge piece around the mount. Print laying flat with supports
Hopper Front Right Corner
Qty
1
Hopper edge piece around the mount. Print so the corner is on the build platform and with supports

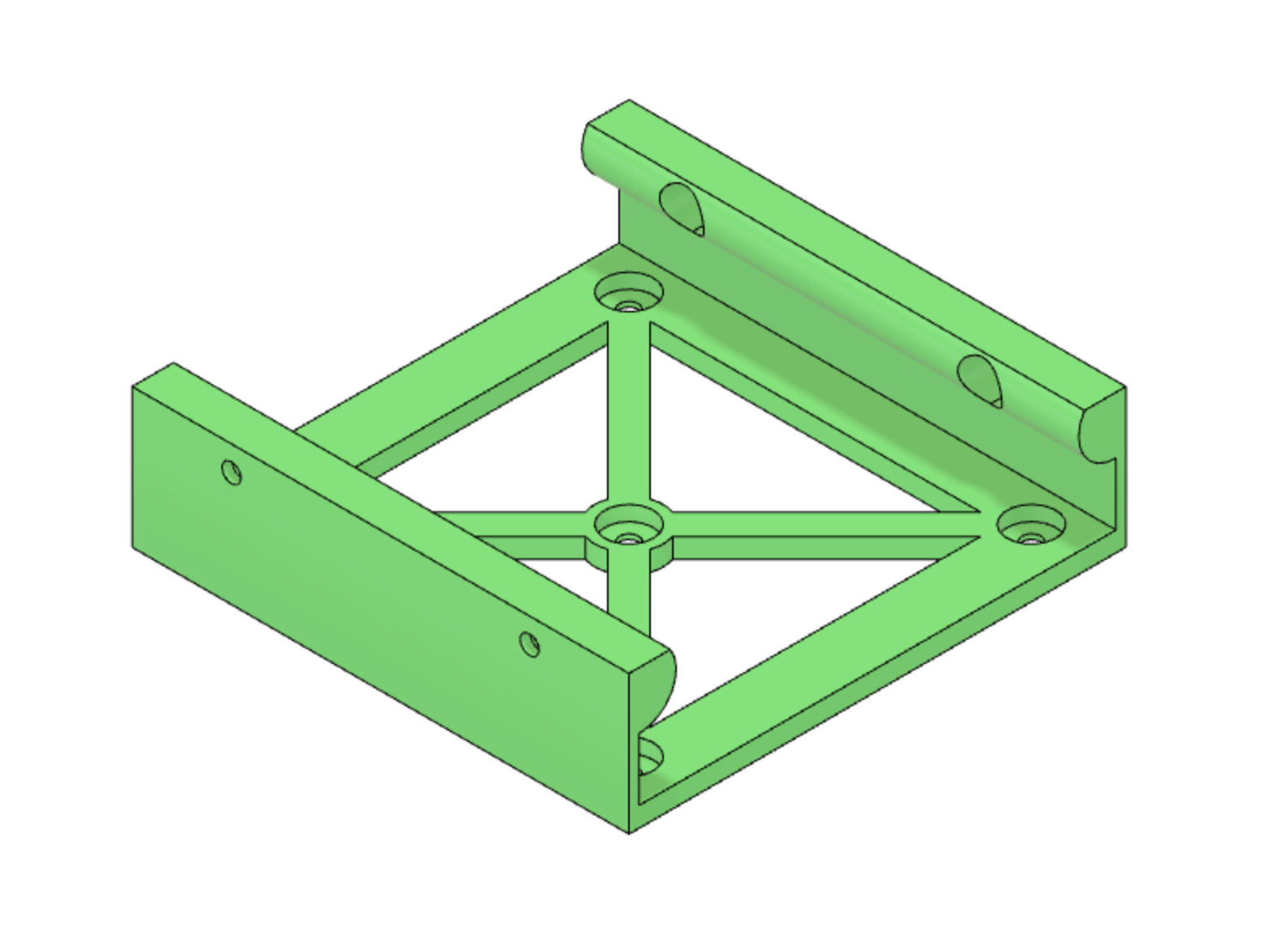

Hopper Mount Left
Qty
1
Hopper mount that holds the tray. Print with supports

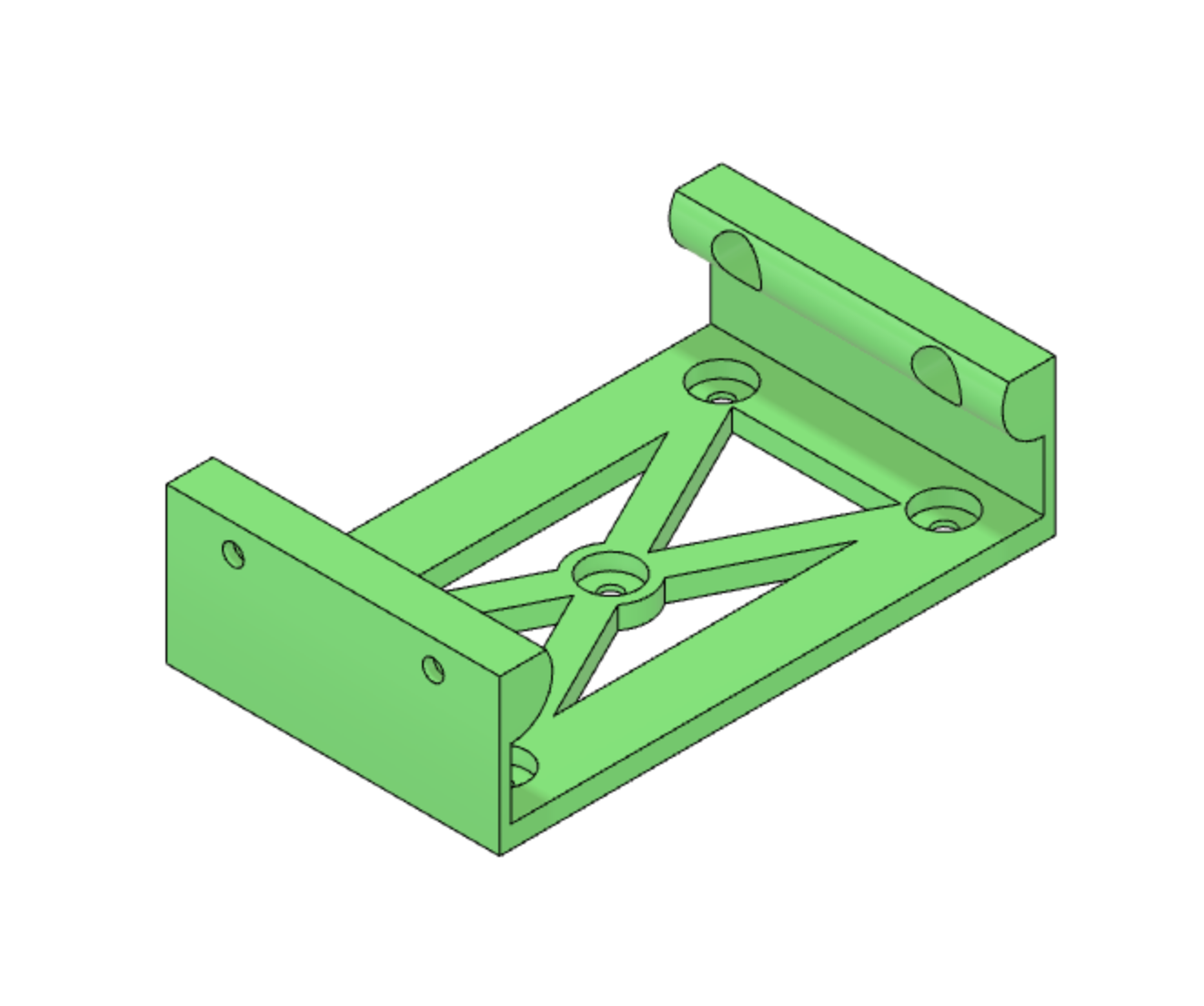

Hopper Mount Middle
Qty
1
Hopper mount that holds the tray. Print with supports

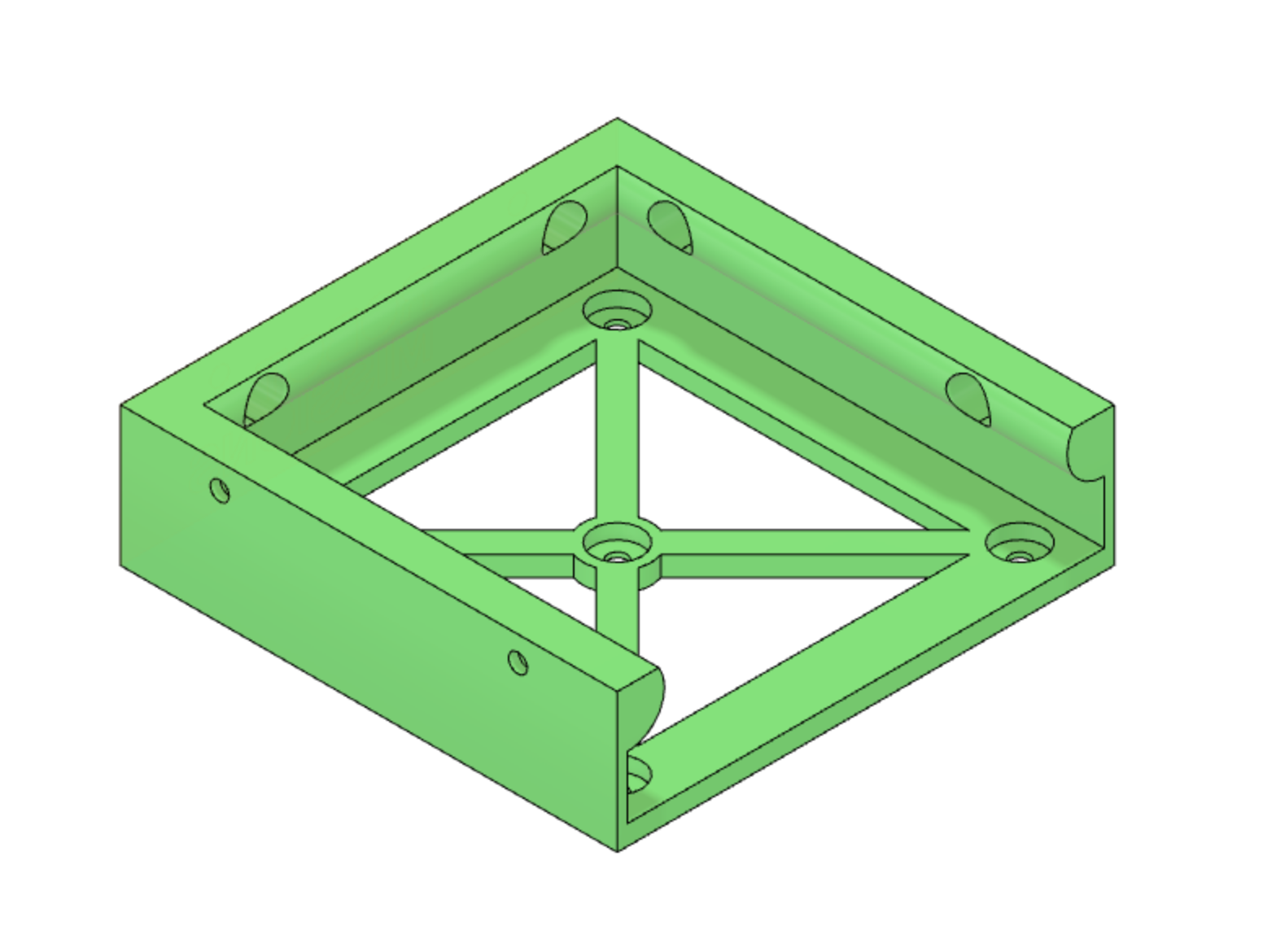

Hopper Mount Right
Qty
1
Hopper mount that holds the tray. Print with supports
Tray Left
Qty
1
Hopper tray that holds the garbage and slides in / out of the mount. Print with supports

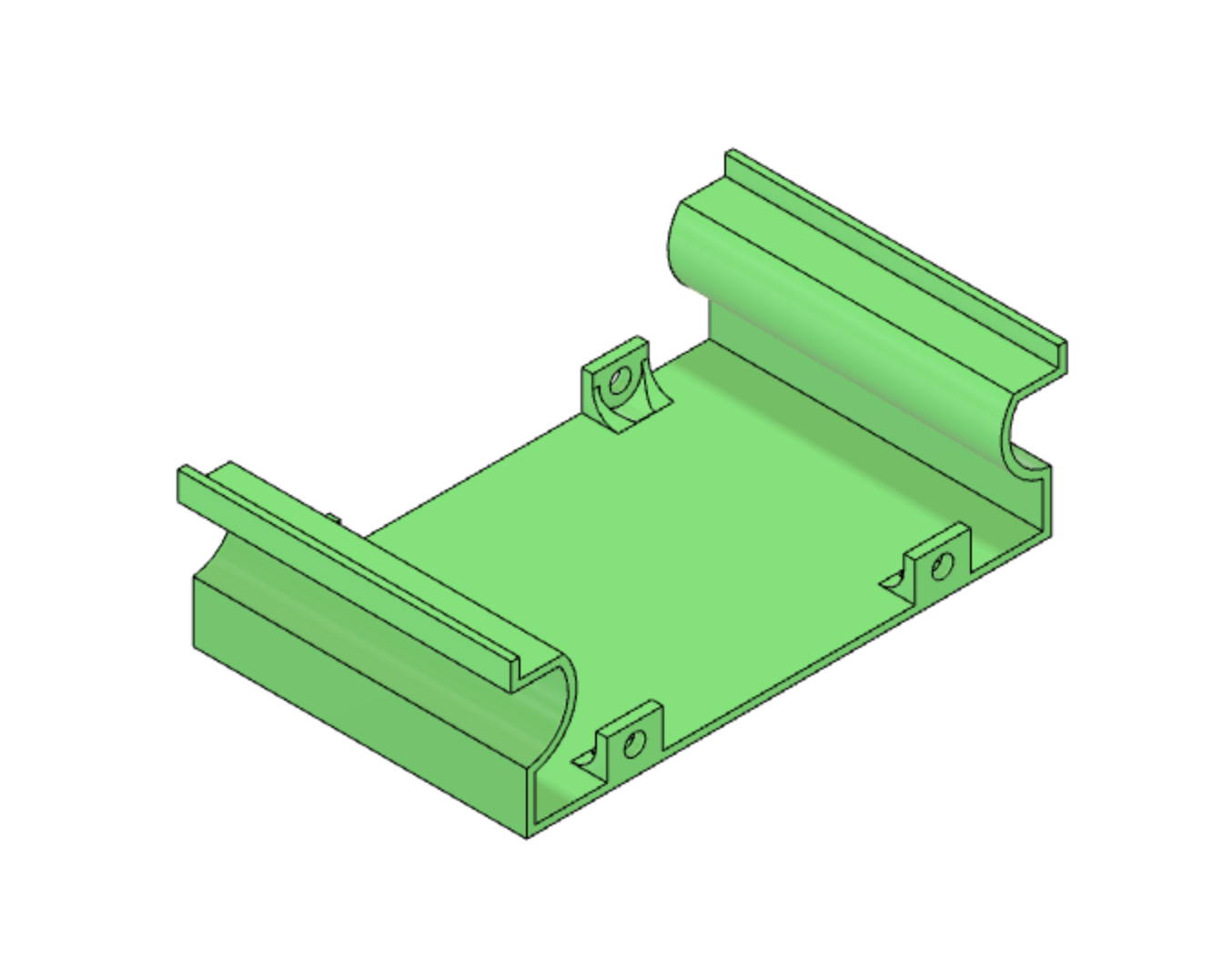

Tray Middle
Qty
1
Hopper tray that holds the garbage and slides in / out of the mount. Print with supports

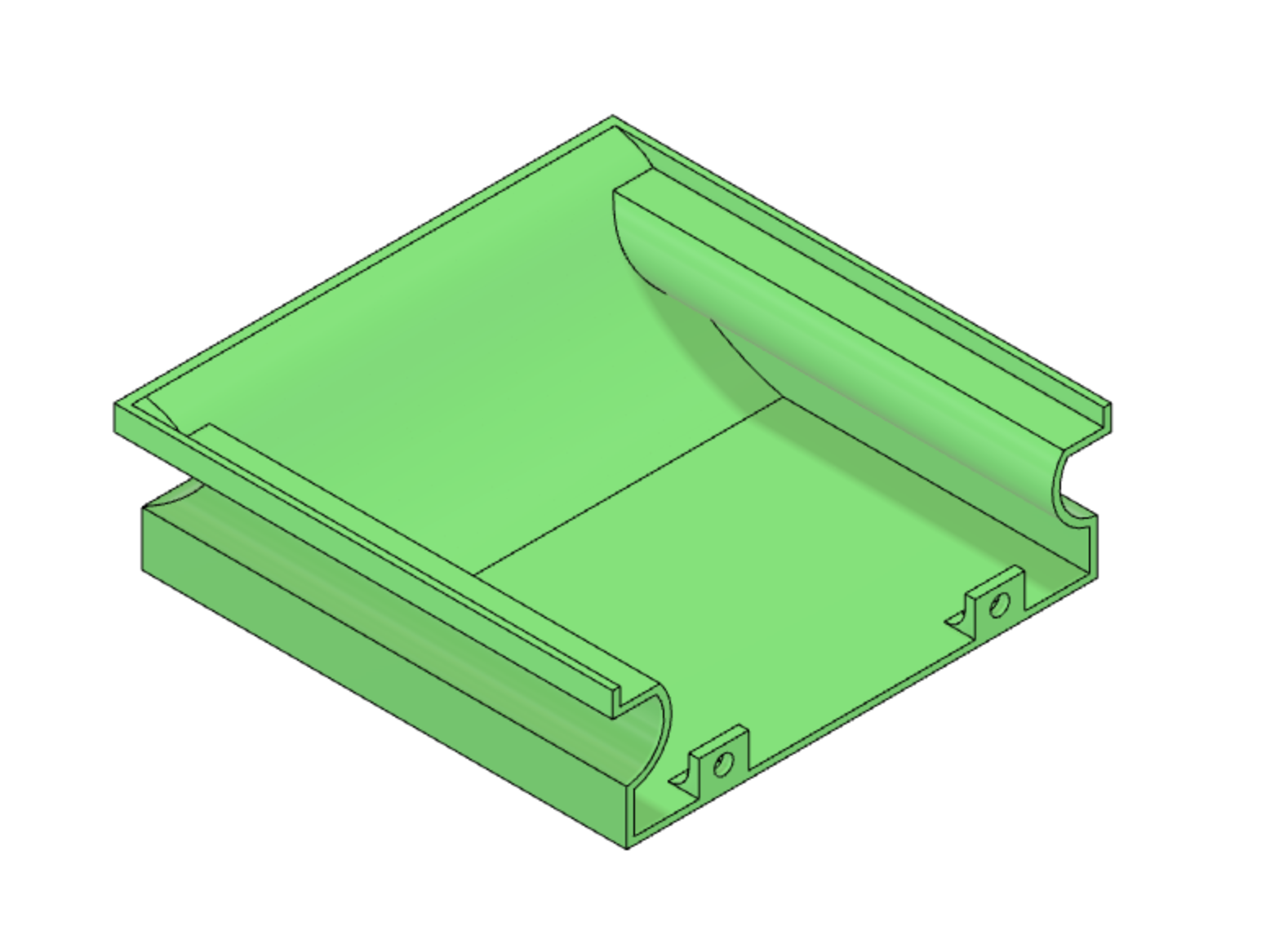

Tray Right
Qty
1
Hopper tray that holds the garbage and slides in / out of the mount. Print with supports

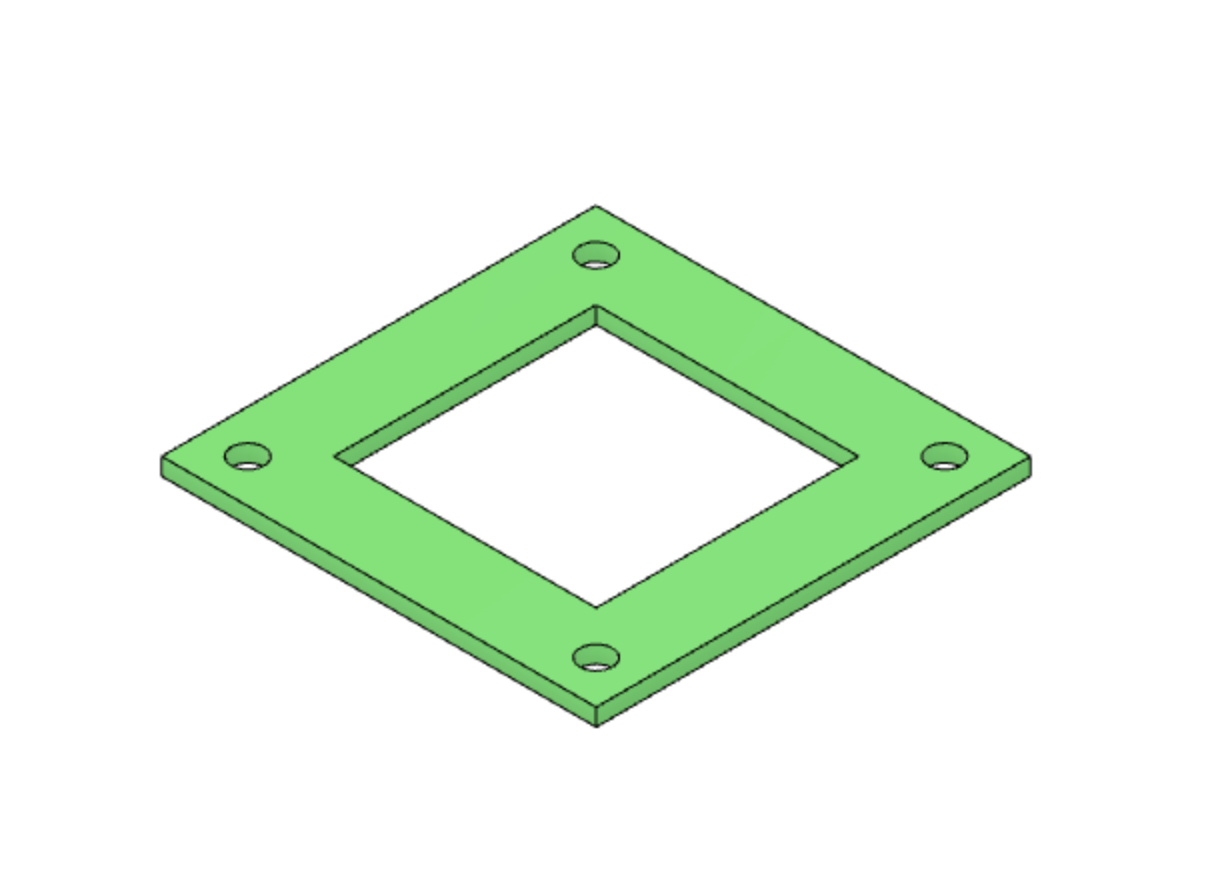

Left Plate
Qty
1
Plate for pivot stand for the lid on the left side

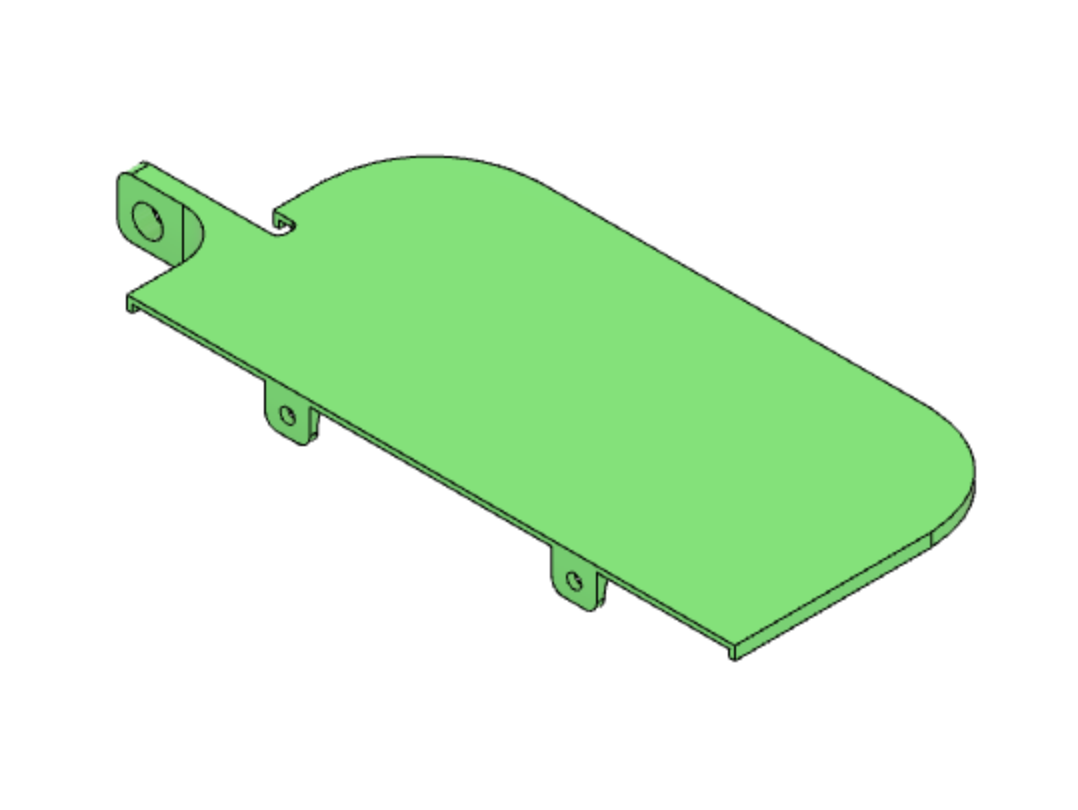

Lid Left
Qty
1
Lid top, print with supports

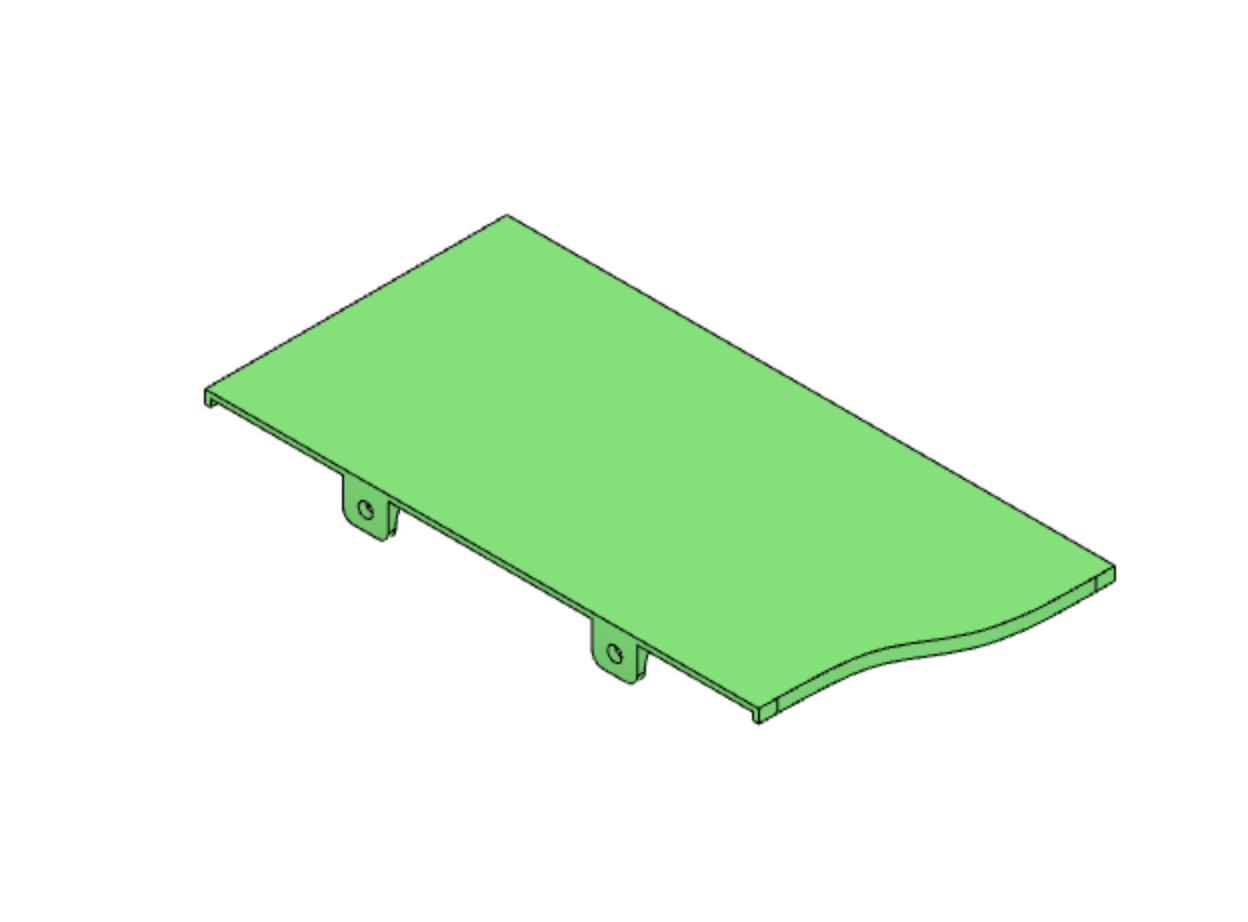

Lid Middle Left
Qty
1
Lid top, print with supports

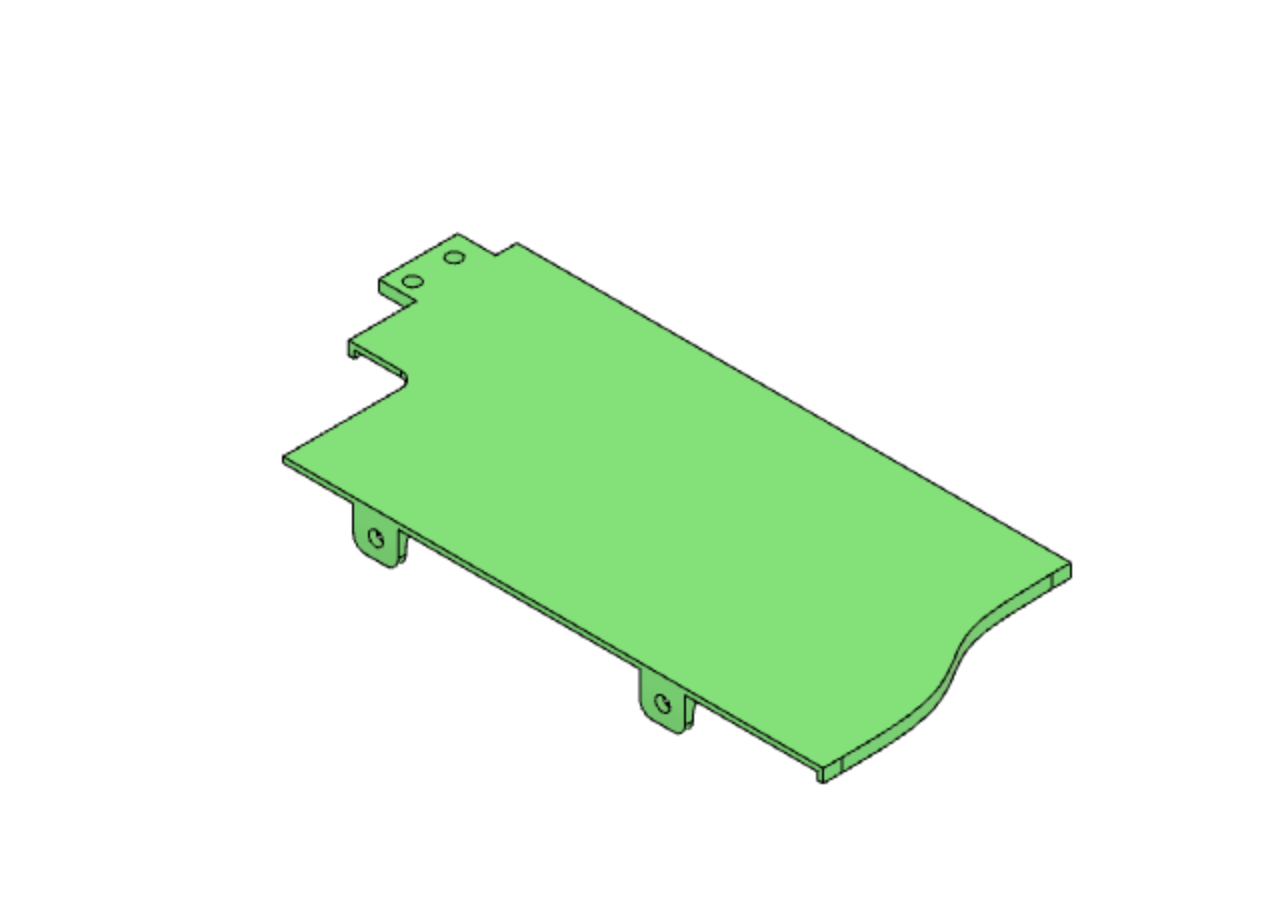

Lid Middle Right
Qty
1
Lid top, print with supports

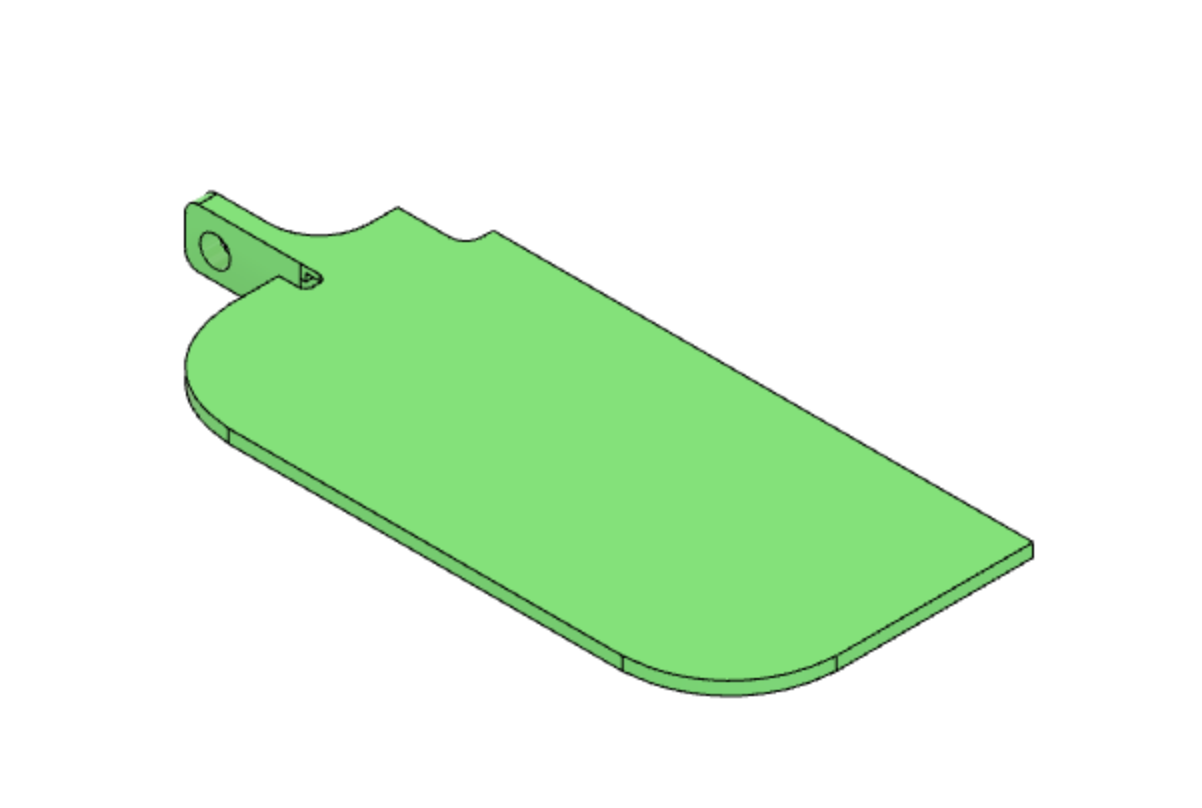

Lid Right
Qty
1
Lid top, print with supports

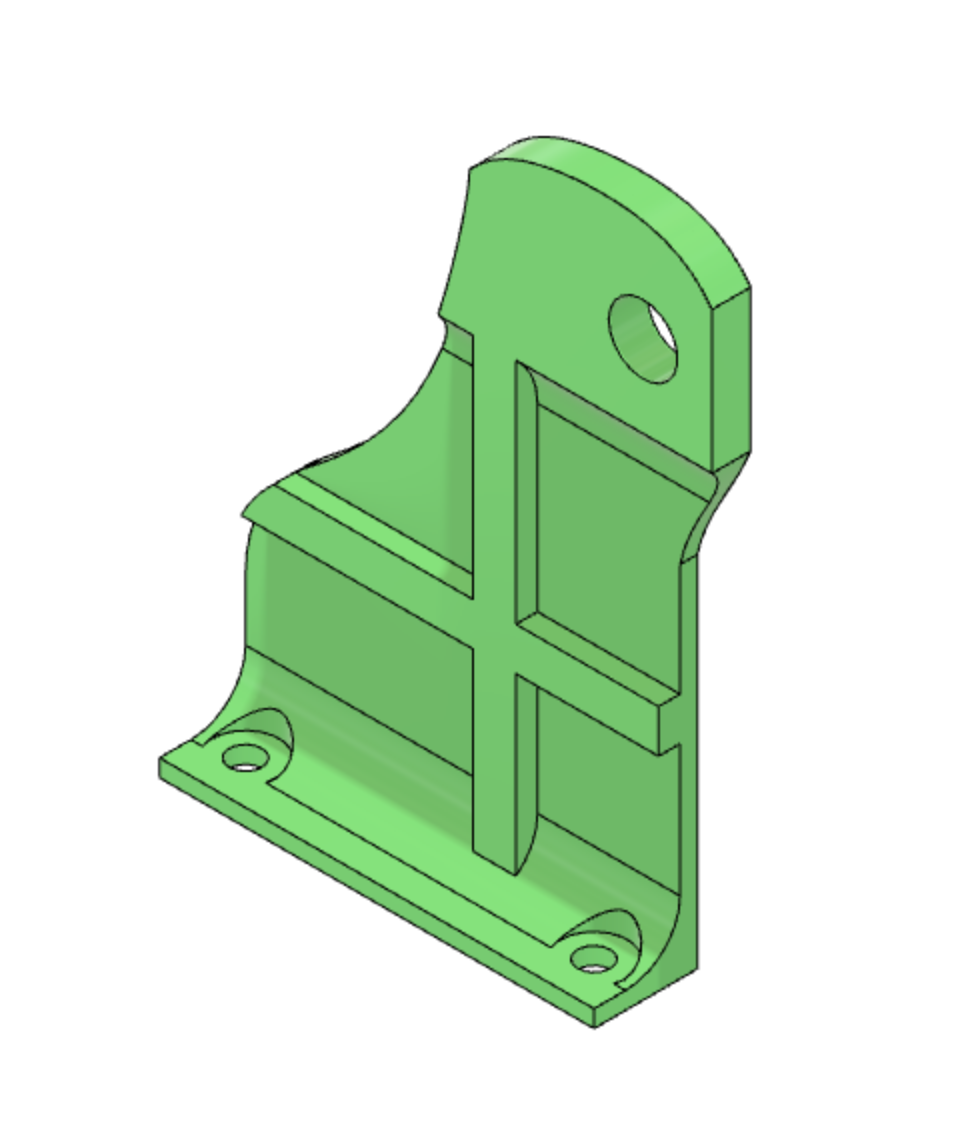

Pivot Mount Left
Qty
1
Lid pivot mount (left). Print laying flat

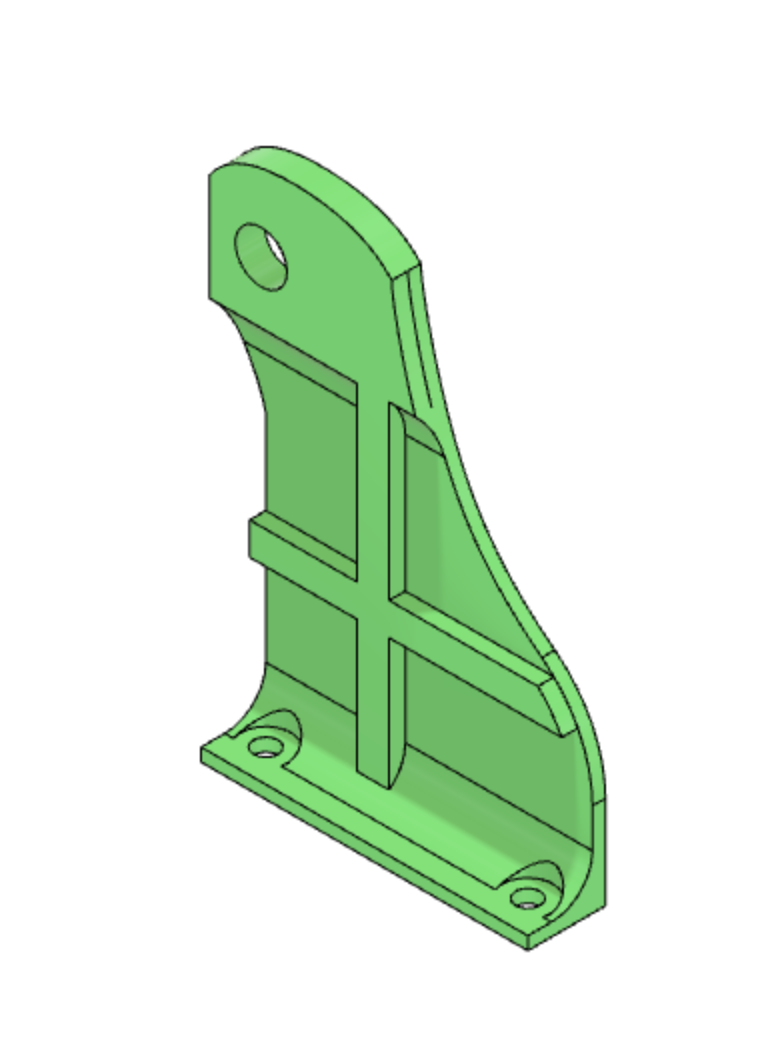

Pivot Right
Qty
1
Lid pivot mount (right). Print laying flat

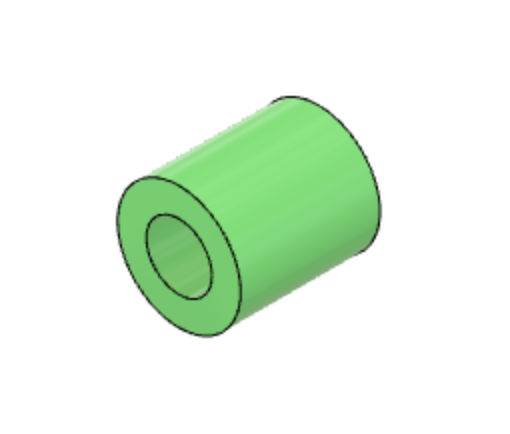

Pivot Washer
Qty
2
Lid pivot washer where the binding post fits through. Remember to print 2, not just 1 this time!

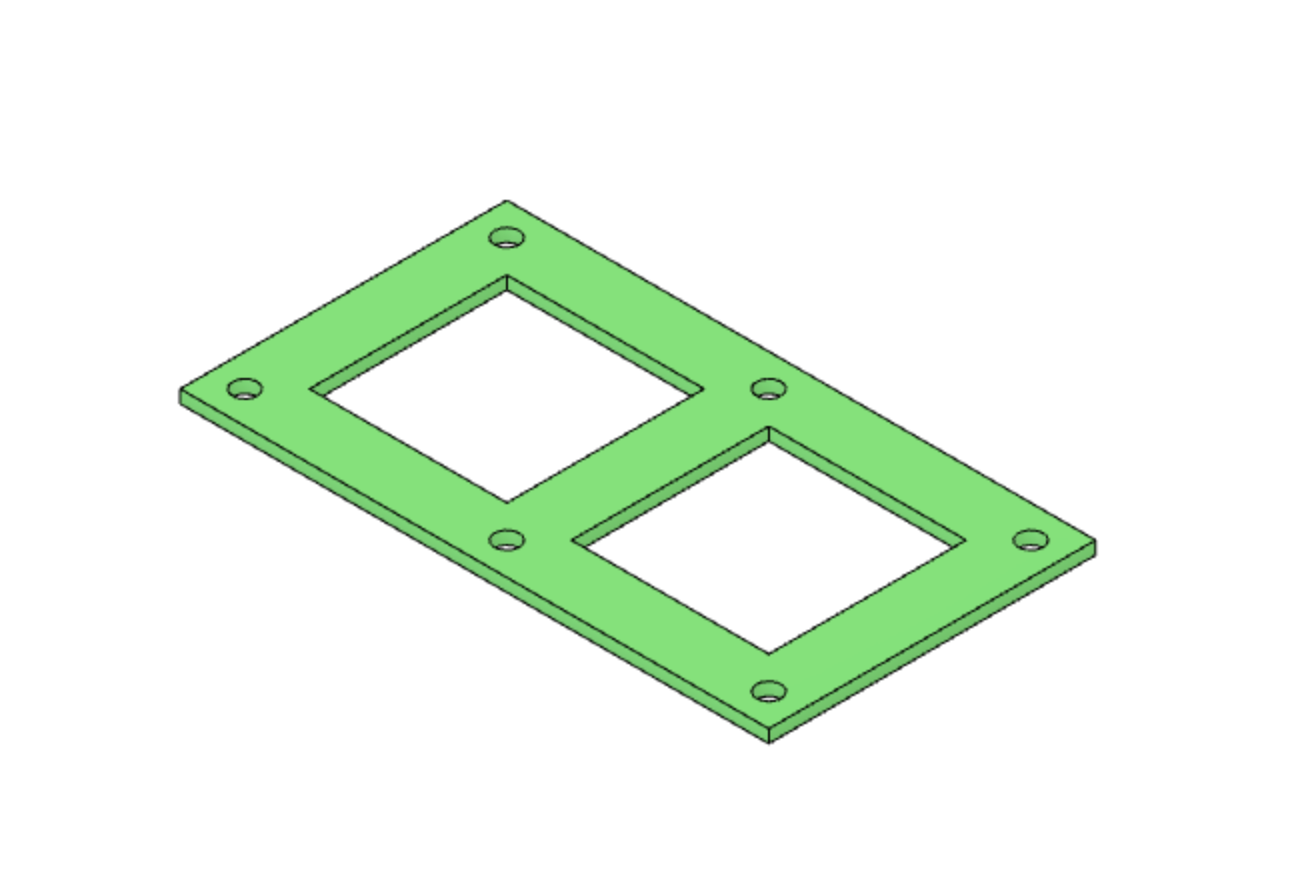

Right Plate
Qty
1
Plate for pivot stand for the lid on the right side

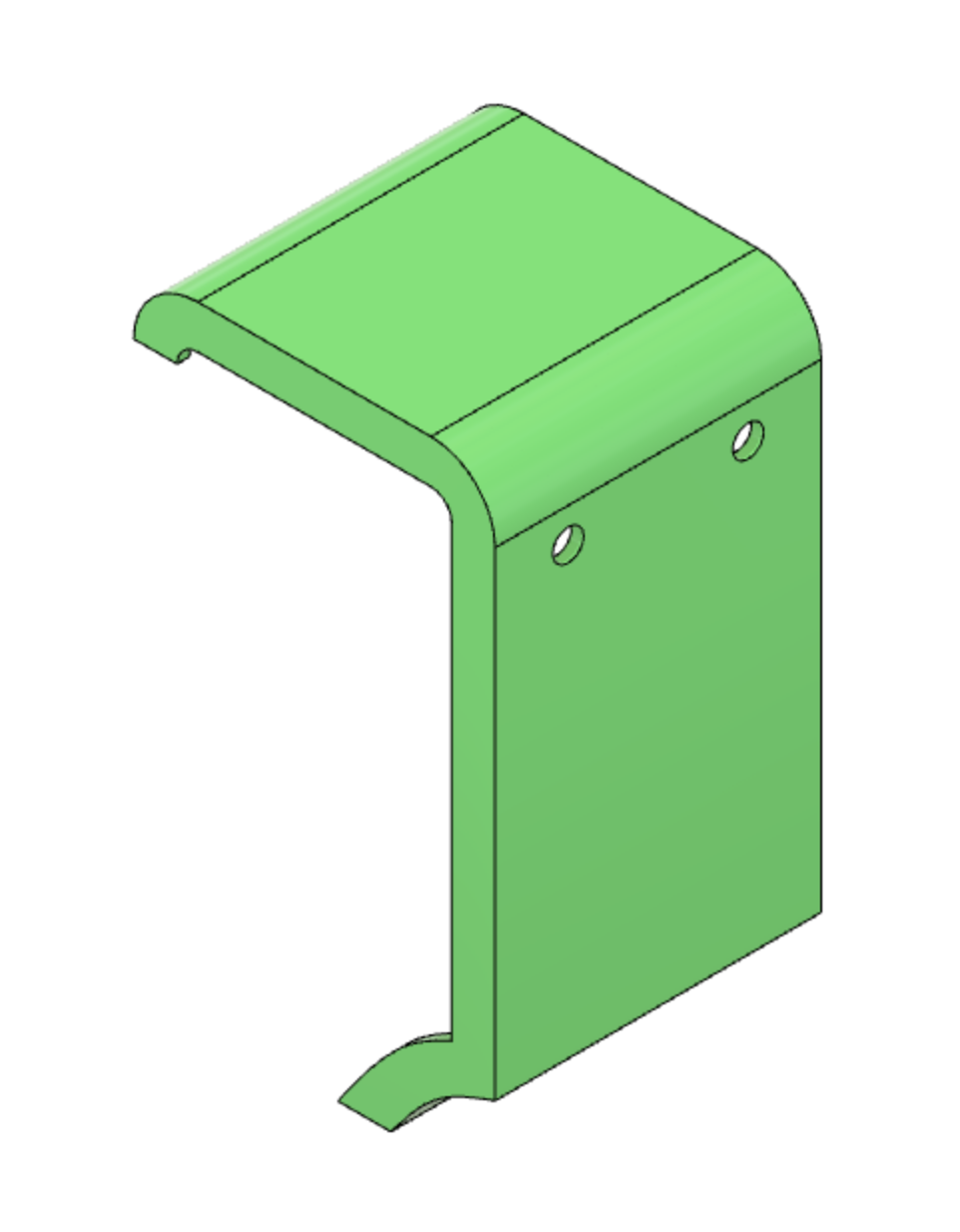

Servo Cover
Qty
1
Covers the servo from incoming sand. Print laying flat, you might need supports

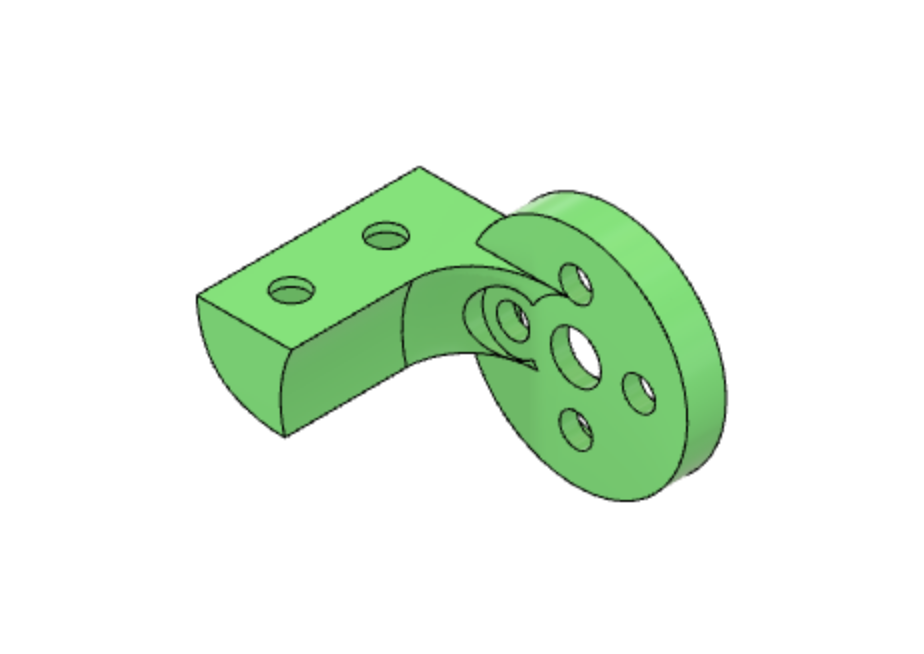

Servo Horn
Qty
1
Attaches the existing servo horn to the lid pieces, allowing the lid to be opened and closed by the servo. Print so the layers are parallel to the top flat face. Print on high resolution with supports

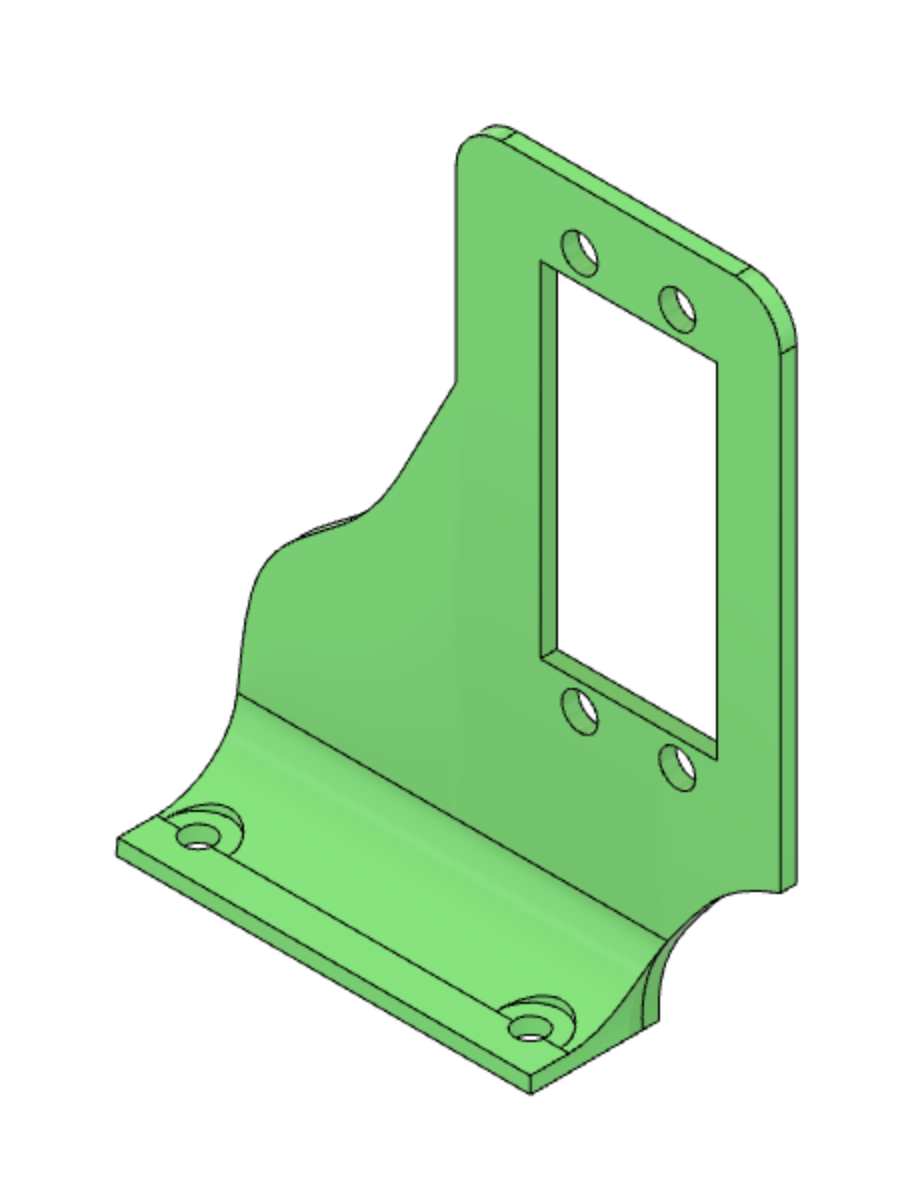

Servo Mount
Qty
1
Servo mount for the lid servo. Print laying flat

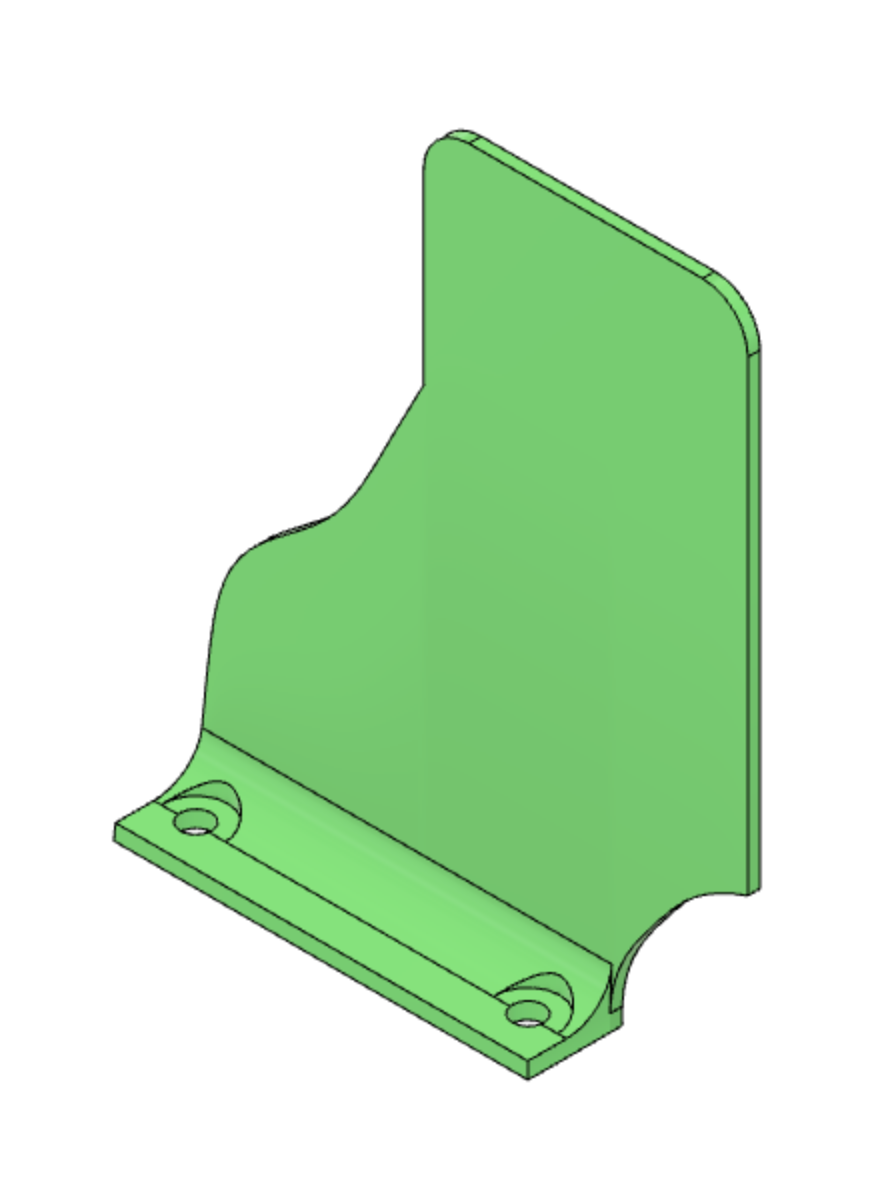

Servo Mount End Cap
Qty
1
End cover for the lid servo assembly. Print laying flat
