Tech Log #036: AWS ec2 instance back up

Tech Log #036: AWS ec2 instance back up

Quick tech log to note that the instance is back up and running again, and the AWS credits missing was resolved! Did some high level searching on what next to tackle with that, and it will be learning more about Route 53, DNS, SSL certificate manager, and React Native. This will come a bit later though, the biggest priority at hand is to make this prototype work.

Tech Log #018: Device connected to map

Tech Log #018: Device connected to map

Sending updates from an ESP32 device to the MQTT server is working! Right now, it’s just barebones running with default values for GPS latitude, longitude, and a random number for air temperature. Ran in to a few issues with library selection, but that was easily remedied. It took some time to test the types that are sent and the precision. Once it started to work, was simple. The library being used will retry connection to the MQTT server in 15 seconds if it loses connection. The next steps are either AR view, score counter, or making the sensor device. Tune in for the next log to see which one of those is chosen.

Tech Log #017: Map GPS coordinate payload update

Tech Log #017: Map GPS coordinate payload update

Changes were made to the GPS coordinate payload, as well as the map. Devices now dynamically load / unload based on if the location is in view on the map. Everything works! Check out the video snippet:

Next step is to start adding new devices to the map – so on to the hardware with MQTT on an ESP32.

Tech Log #016: All 51 datapoints on map!

Tech Log #016: All 51 datapoints on map!

All 51 datalog points are being displayed on the map! The bug from yesterday was fixed. There were three contributing factors, a type error when parsing, a unicode decode error, and the most pertinent one was parsing .DS_Store instead of a real log file. The first two errors were missed because forever is able to restart the scripts automatically upon exit. It was only after looking at the forever logs was it noticed. Glad it was found! The parsing the wrong file was due to not incrementing the line number at the certain part of the code that’s to skip that file. Once those were fixed, the 51 devices were added to the array for the map as expected.
The dots are coloured based on Yellow Bowie or Original Bowie. There is a sound that is emitted too, each time a new MQTT message arrives. It makes for interesting emergences of musical beats, or maybe it’s just noise.
There’s a video available here where you can hear the sounds (available early to Patreon backers – will post it here when it’s released).

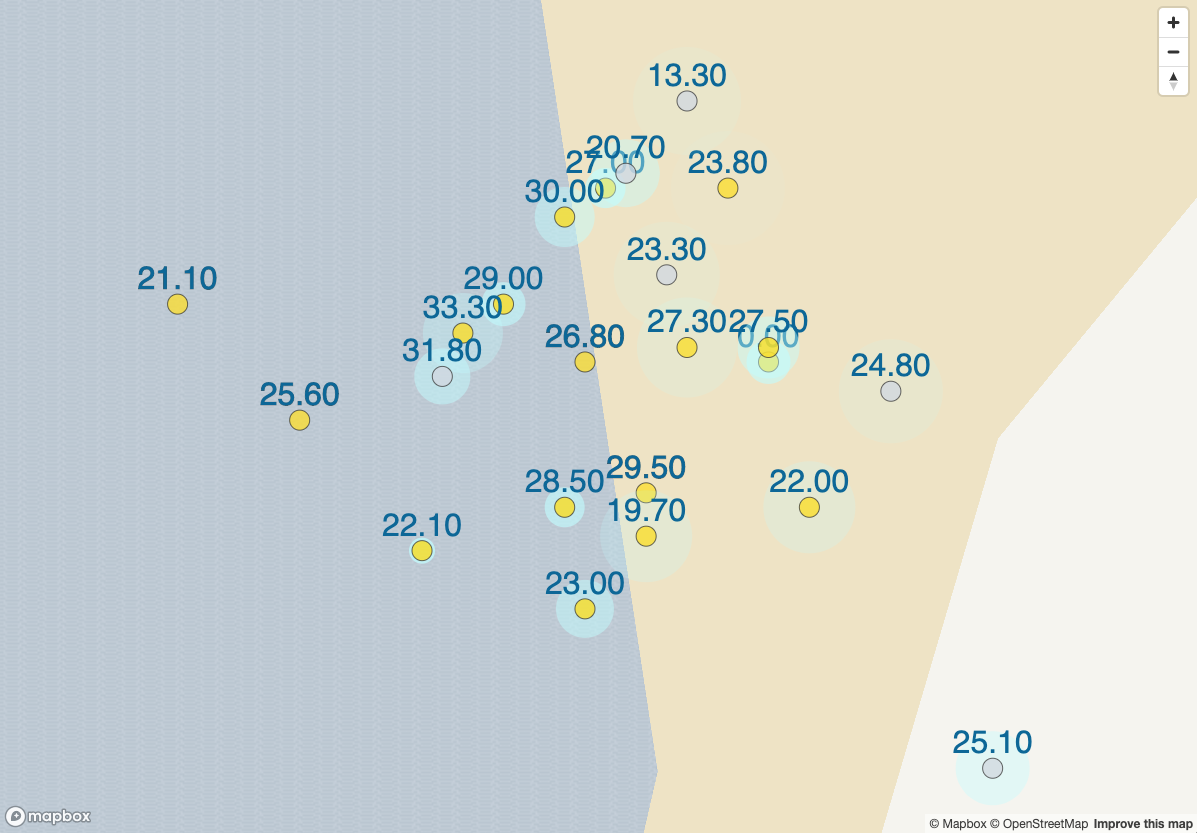

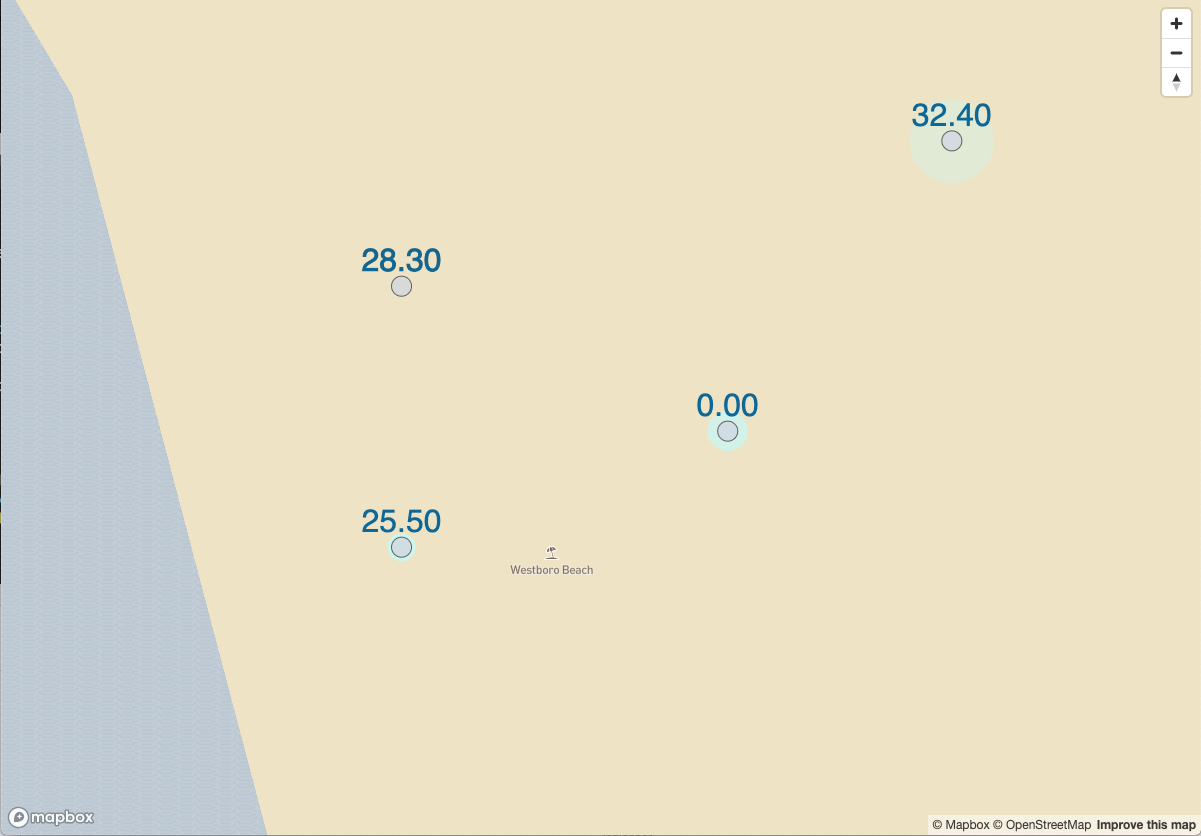

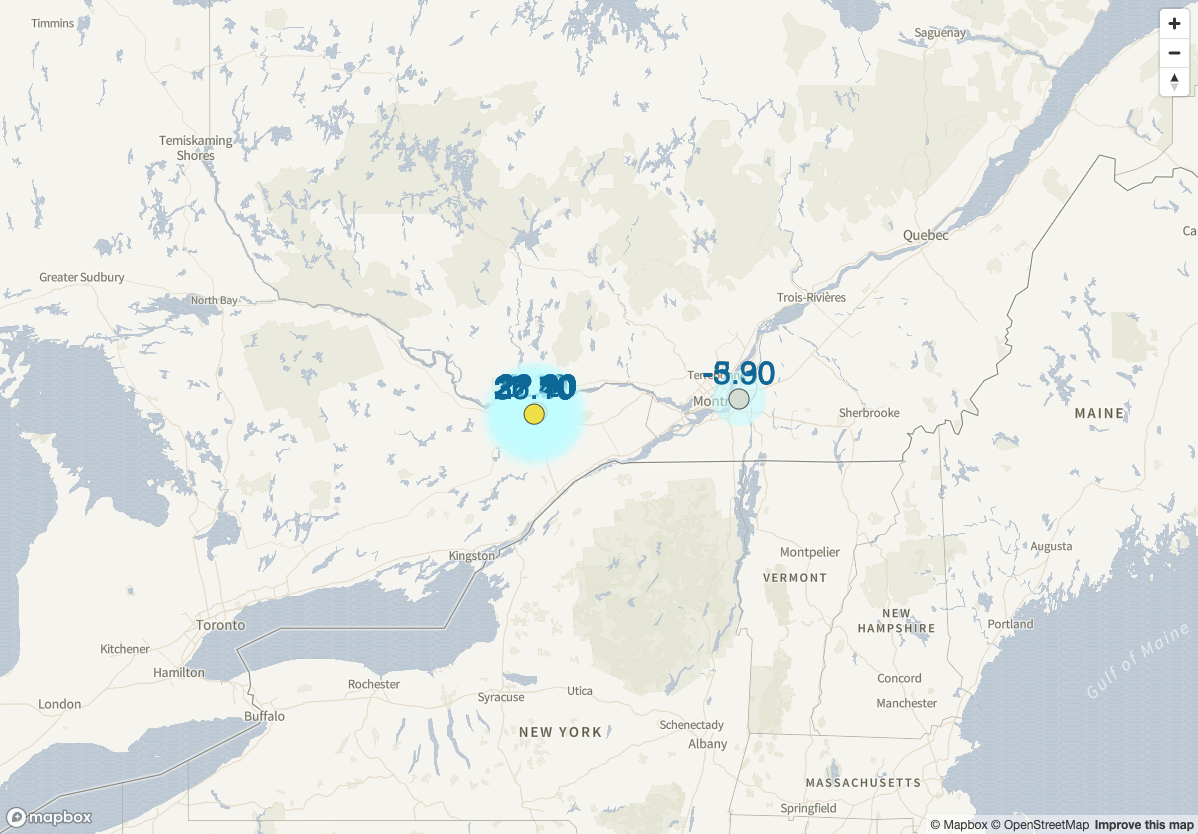

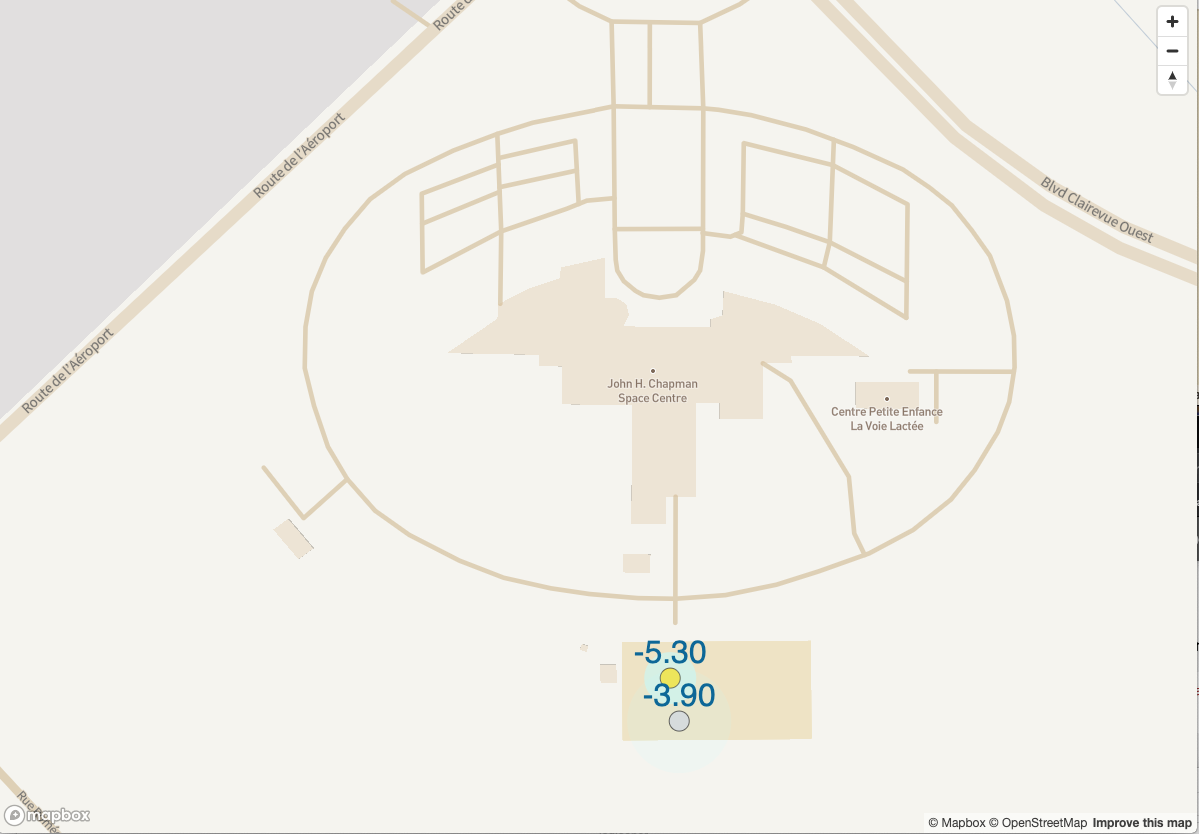

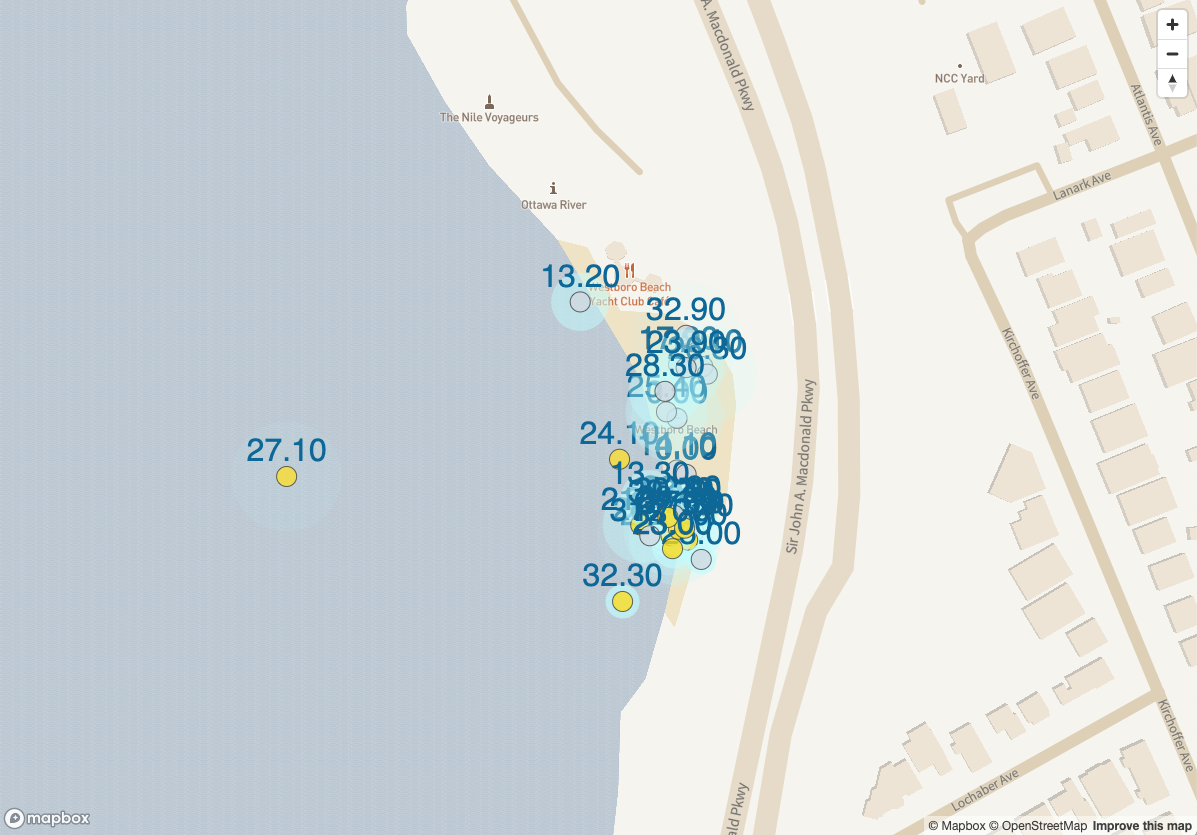

Anyway, it’s cool to finally see where all the data points are situated in the world! Enjoy these screenshots. Next step is to refactor lat & lon messages to be sent as one message, and dynamically load / unload devices.
Tech Log #015: Array of Device objects updating in map

Tech Log #015: Array of Device objects updating in map

The array of Device objects is being updated with the data from MQTT. Presently, all devices (the 51 logs) are being stored as a test. This will then be used to display dots on the map. The console shows 50 Devices added to the array, not 51, however forever list verifies that 51 devices of loglooper are running. There’s an off-by-one error somewhere, and that has to be debugged. Currently the latitude and longitude are being sent in separate messages. They will need to be combined into one message, to make search faster for seeing if that coordinate is displayed on-screen or not. That will let us keep in memory only what is needed to be there! Next step is debugging, display of all the dots on the map, then refactoring the lat & lon messages.
